Product Overview

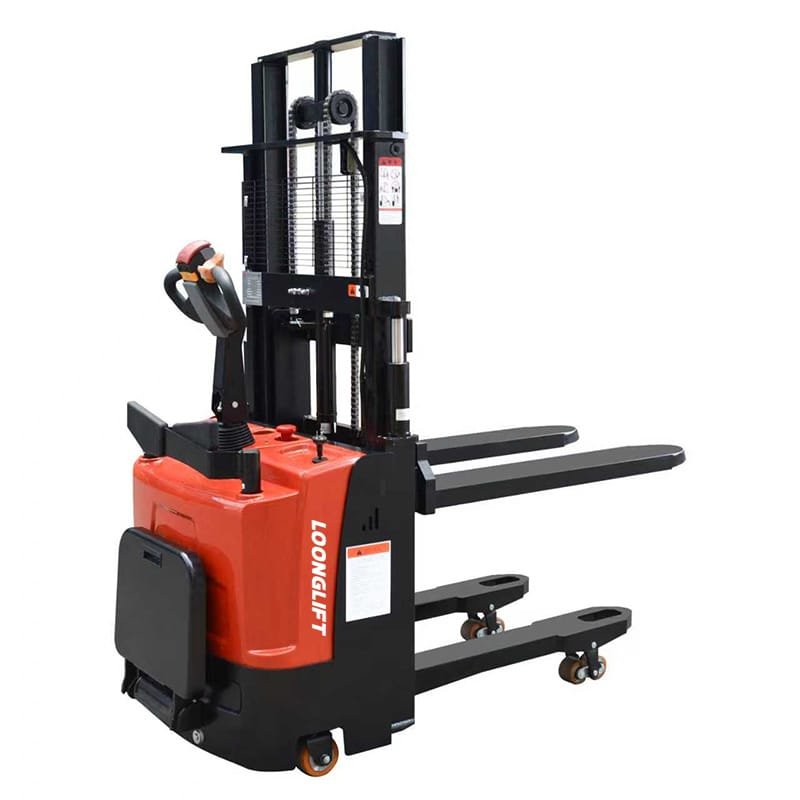

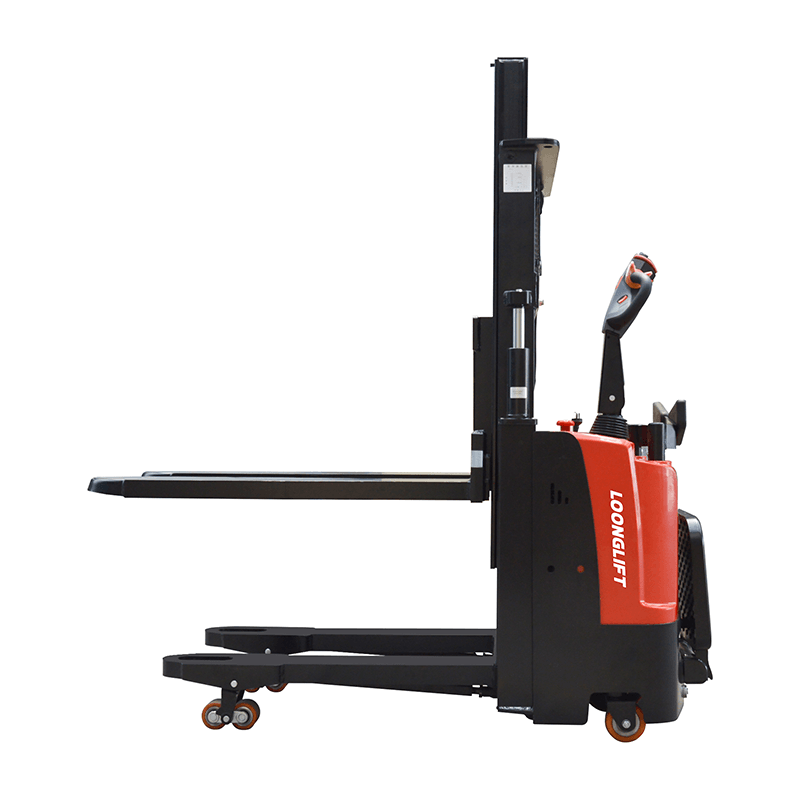

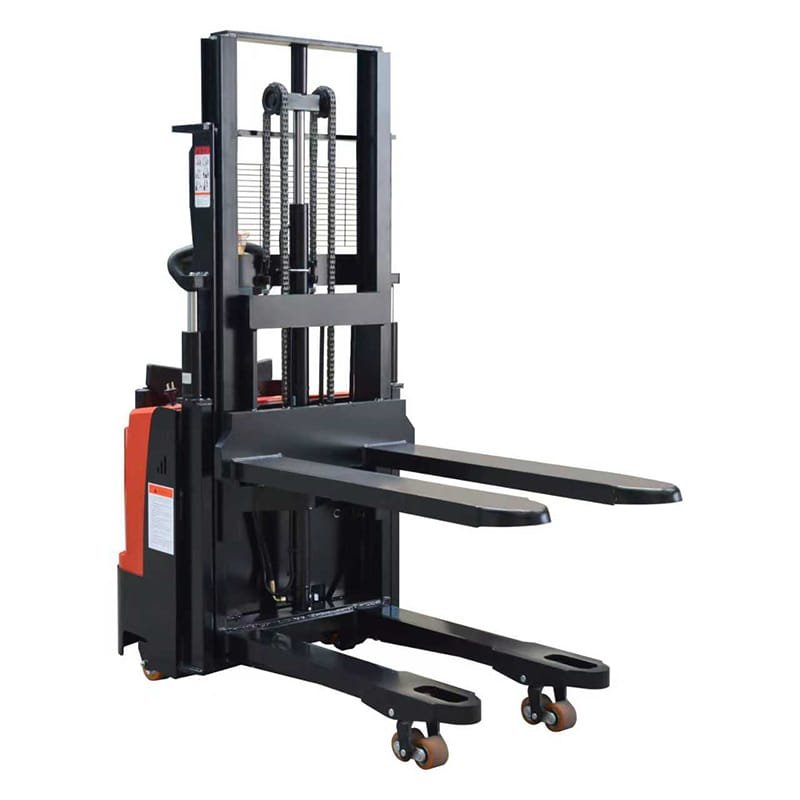

The CDD-JS Double Lift Pallet Stacker is a high-performance electric walkie stacker designed for efficient warehouse material handling. With a 1500kg load capacity and flexible lifting heights from 1.6m to 3.5m, this stacker delivers reliable performance for pallet handling, stacking, and order picking operations.
Equipped with advanced safety features and low-maintenance power systems, it is the ideal solution for small to medium warehouses, logistics centers, and retail distribution hubs.

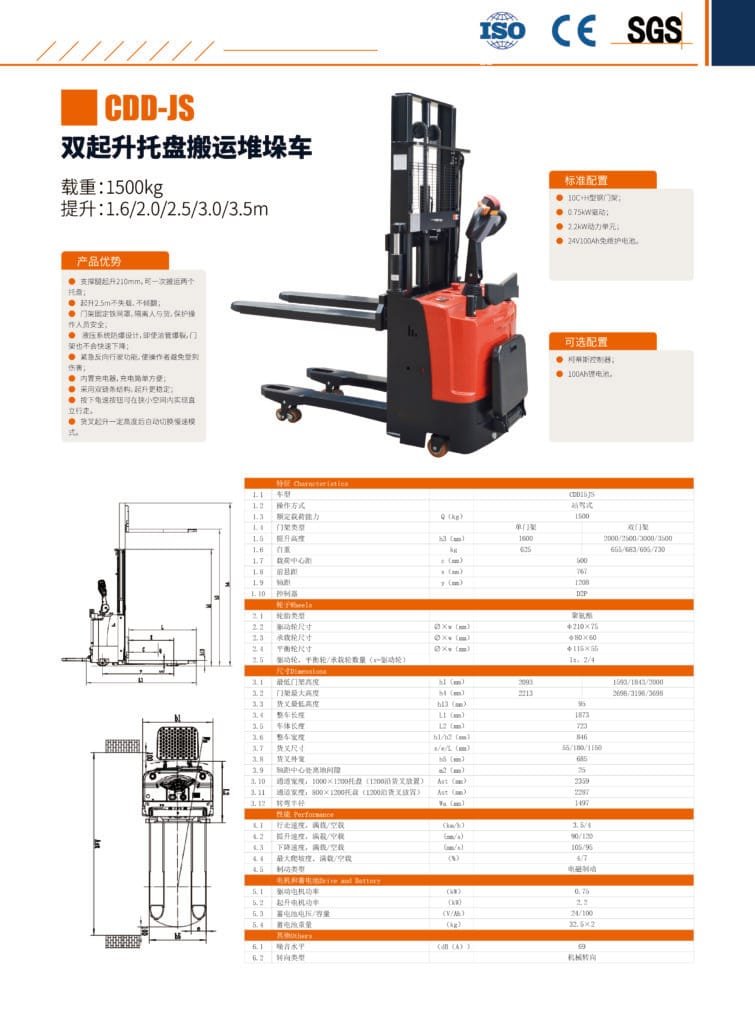

Key Specifications
Product Advantages
✅ Dual Lift Design
- 210mm fork lift for handling two pallets at once, boosting warehouse efficiency by 50%
- 2.5m lifting without tilt, ensuring load stability and safety
✅ Enhanced Safety Features
- Fixed mast fence to protect operators from falling goods
- Hydraulic explosion-proof design prevents sudden fork lowering
- Emergency reversing function to avoid operator injury
- Built-in charger for easy, convenient charging
✅ Flexible Maneuverability
- Compact design with 1497mm minimum turning radius for narrow aisle operations
- Downward speed button for precise control in tight spaces
- Automatic slowdown after fork lifting to prevent accidents
✅ Low Maintenance & Reliability
- 24V/100Ah maintenance-free battery as standard
- Optional lithium battery for longer runtime and faster charging
- Double chain structure for stable lifting performance
Standard & Optional Configuration
Standard Configuration
- 10CH H-shaped steel mast
- 0.75kW drive motor
- 2.2kW lift motor
- 24V/100Ah maintenance-free battery
Optional Configuration
- Curtis controller for smoother operation
- 100Ah lithium battery for extended runtime
Application Scenarios
This electric pallet stacker is perfect for:
- Warehouse & Logistics: Pallet stacking, loading/unloading, and order picking
- Retail & Distribution Centers: Efficient inventory management and cross-docking
- Manufacturing Facilities: Line-side material delivery and finished goods handling
- Cold Storage & Food Processing: Zero-emission operation for temperature-controlled environments
Explore our full range of electric material handling equipment
FAQ
Q1: What is the maximum load capacity of the CDD-JS double lift pallet stacker?
A: The CDD-JS stacker has a 1500kg (1.5-ton) rated load capacity, suitable for most standard pallet handling tasks in warehouses and logistics centers.
Q2: What lifting heights are available for this electric stacker?
A: We offer flexible lifting height options: 1.6m (single mast) and 2.0m / 2.5m / 3.0m / 3.5m (double mast) to meet different warehouse racking and stacking needs.
Q3: Can this stacker work in narrow aisles?
A: Yes. With a 1497mm minimum turning radius and compact body design, the CDD-JS stacker is ideal for narrow aisle operations in small to medium warehouses.
Q4: What battery options are available?
A: The standard configuration is a 24V/100Ah maintenance-free lead-acid battery. We also offer an optional 24V/100Ah lithium battery for longer runtime, faster charging, and longer service life.
Fill out our
contact form to get a customized quote for your CDD-JS double lift pallet stacker. Our team will help you select the right lifting height and battery configuration for your warehouse needs.
