CPD16J walkie counterbalance forklift with 1500kg capacity and 1.6–3.5m lift height. Compact electric forklift for small warehouse, retail and logistics use. In stock, fast delivery.

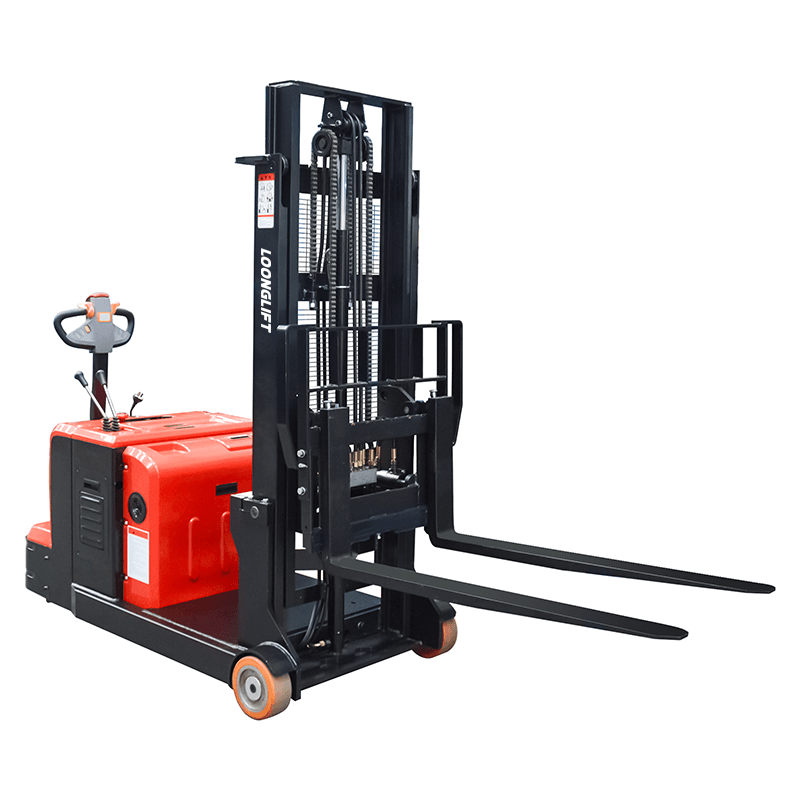

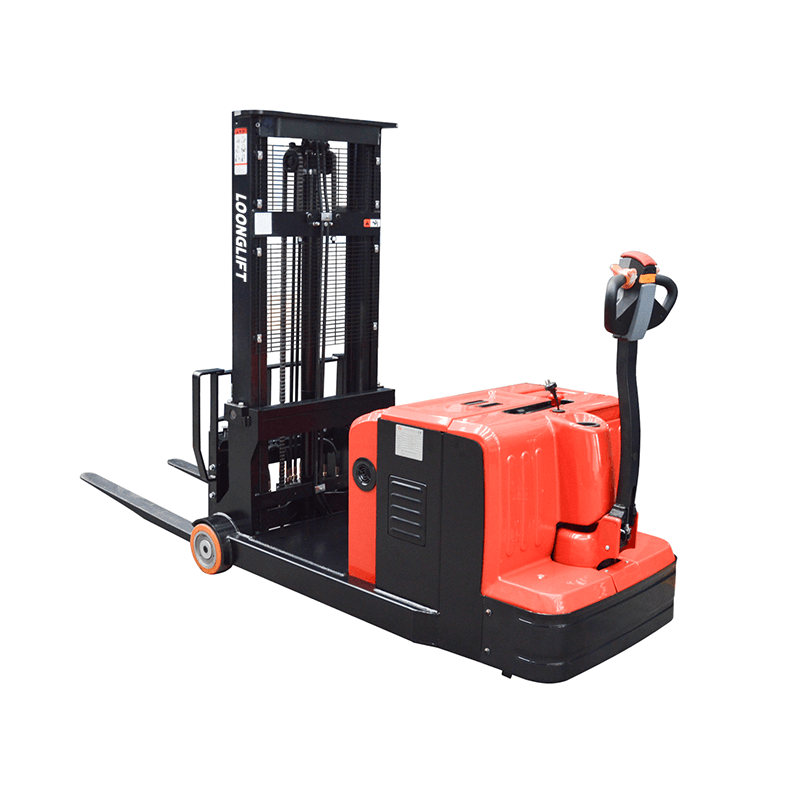

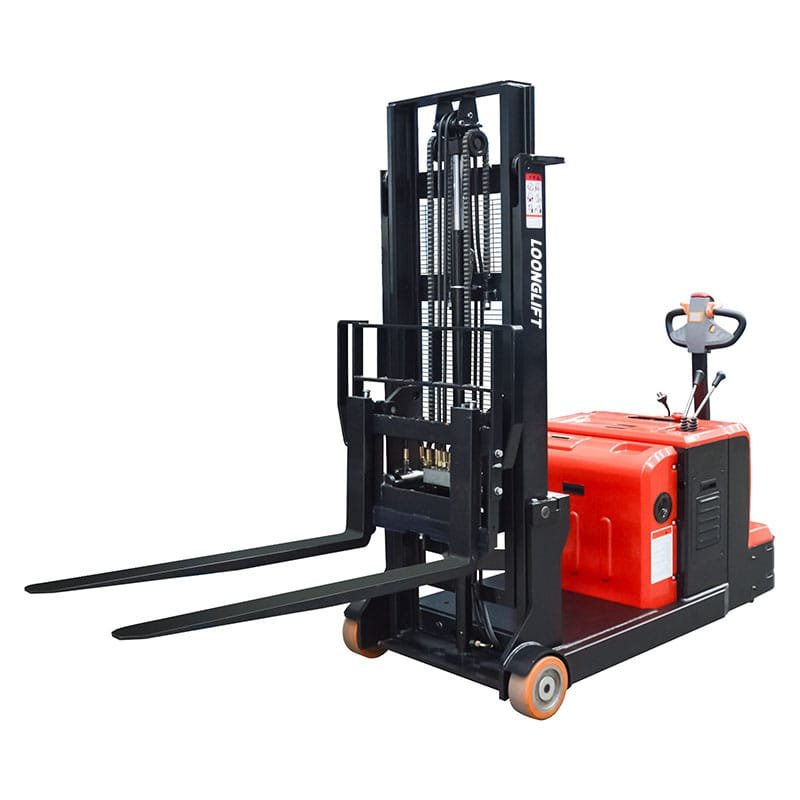

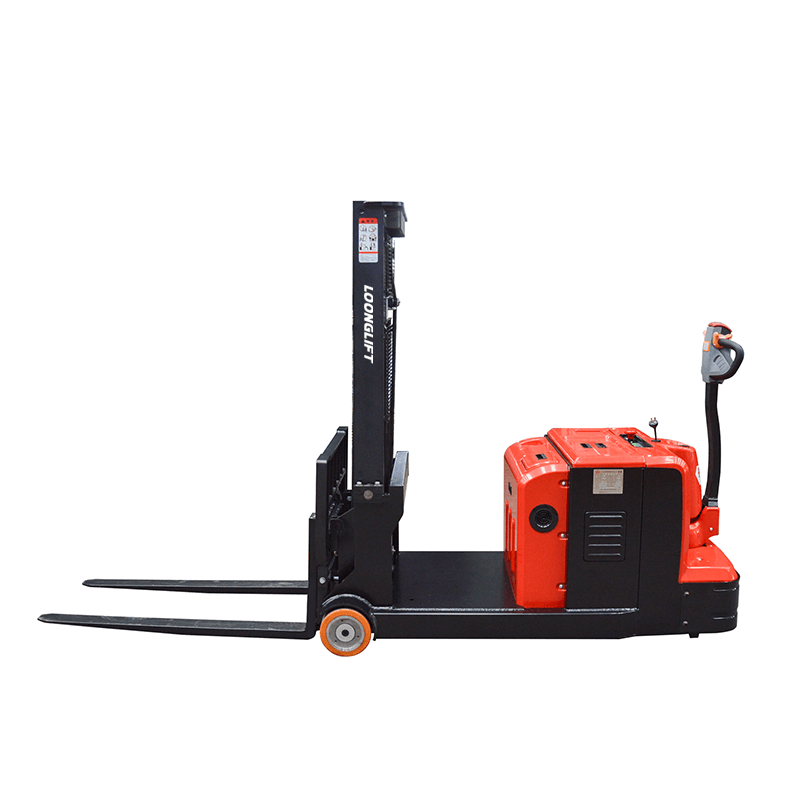

The CPD16J Walkie Counterbalance Forklift is a powerful and compact electric forklift designed for small to medium warehouses, e-commerce logistics, and indoor material handling.
With a 1500kg (1.5 ton) load capacity and lifting heights up to 3.5m, it is ideal for pallet handling, stacking, and loading tasks in narrow and space-limited environments.
Thanks to its counterbalance design without outriggers, the CPD16J can directly handle closed pallets and non-standard pallets, making it more flexible than traditional pallet stackers.
It is the ideal forklift alternative for businesses looking for higher capacity with compact size and lower investment cost.
In stock and ready for fast delivery. All units are tested before shipment. OEM customization available.

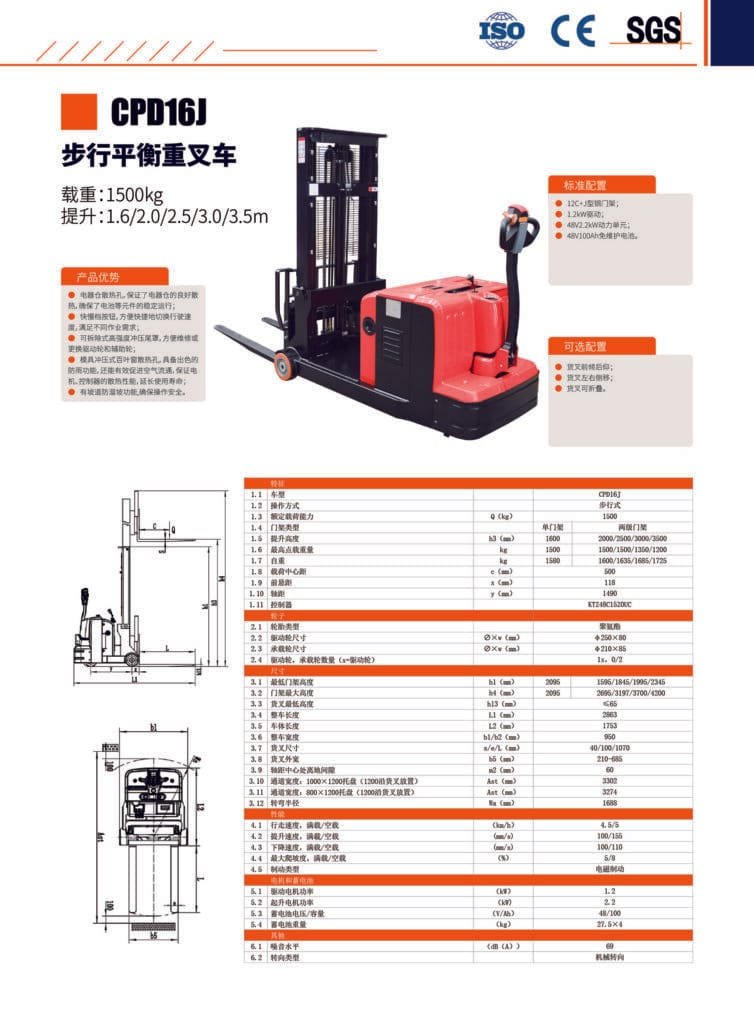

Model: CPD16J
Product Type: Walkie Counterbalance Forklift
Load Capacity: 1500kg (1.5 Ton)
Operation Type: Walkie / Pedestrian
Mast Type: Single Mast / Two-Stage Mast
Lifting Height Options:
1600mm / 2000mm / 2500mm / 3000mm / 3500mm
Drive Motor: 1.2 kW
Lift Motor: 2.2 kW
Battery: 48V / 100Ah Maintenance-Free
Controller: KTZ48C15ZUC
Brake Type: Electromagnetic Braking
Steering Type: Mechanical Steering
Noise Level: ≤ 69 dB(A)
Travel Speed (Full/No Load): 4.5 / 5 km/h
Lifting Speed (Full/No Load): 100 / 155 mm/s
Lowering Speed (Full/No Load): 100 / 110 mm/s
Gradeability (Full/No Load): 5% / 8%
Overall Length (with forks): ≤ 2865 mm
Overall Width: 953 mm
Turning Radius: 1688 mm
Lowest Mast Height:
Single Mast: 2095 mm
Two-Stage Mast: 1595 / 1845 / 1995 / 2345 mm
Max Mast Height:
2695 / 3197 / 3700 / 4200 mm
Fork Size: 40 / 50 / 1070 mm
Fork Outer Width: 210 – 685 mm
Ground Clearance: 52 mm
Applicable Pallets:
1000×1200mm pallet: aisle width 3302 mm
800×1200mm pallet: aisle width 3274 mm
Wheel Type: Polyurethane
Drive Wheel: Φ250×80 mm
Load Wheel: Φ210×85 mm
Counterbalance Design for Closed Pallets
No outriggers required, allowing direct handling of closed pallets and improving flexibility.
Compact Electric Forklift for Narrow Aisles
Small turning radius (1688mm) makes it ideal for tight warehouse spaces.
Efficient Cooling System
Ventilation design ensures stable operation of motor, controller, and battery, extending lifespan.
Flexible Speed Control
Fast/slow switch improves handling efficiency in different working conditions.
Easy Maintenance Design
Removable rear cover allows quick access to drive wheel and key components.
Enhanced Safety Protection
Anti-roll-back function on slopes and rainproof design ensure safe operation.
This 1.5 ton walkie electric forklift is ideal for:
Small and medium warehouses
E-commerce fulfillment centers
Retail stores and supermarkets
Manufacturing workshops
Businesses handling closed pallets
Users needing a compact forklift with higher capacity
Warehouse Storage & Logistics
Efficient pallet stacking and transport in narrow aisles
E-commerce Operations
Fast handling for high-frequency order picking
Retail & Distribution
Flexible use in backroom storage and restocking
Production Lines
Material transport and assembly support
Indoor Warehousing
Low noise (≤69 dB) and zero emission for indoor use
Explore more equipment:
Electric Pallet Stackers
Electric Forklifts
Standard Configuration:
12C+J steel mast
1.2kW drive motor
2.2kW lift motor
48V/100Ah maintenance-free battery
Optional Configuration:
Fork tilt (forward/backward)
Side shift (left/right)
Foldable forks
Q: What is the load capacity?
A: 1500kg (1.5 ton), suitable for medium-duty warehouse operations.
Q: Can it handle closed pallets?
A: Yes, the counterbalance design allows direct handling without outriggers.
Q: Is it suitable for narrow aisles?
A: Yes, with a turning radius of 1688mm, it is ideal for tight spaces.
Q: What battery does it use?
A: 48V/100Ah maintenance-free battery.
Q: What industries is it suitable for?
A: Warehousing, retail, e-commerce, and light manufacturing.
Looking for a compact and powerful 1.5 ton electric forklift?
Contact us on WhatsApp for price and stock:
WhatsApp: +86 19049579668
In Stock & Fast Delivery
Ready to ship for urgent warehouse needs
OEM Customization Available
Support for branding and bulk orders
