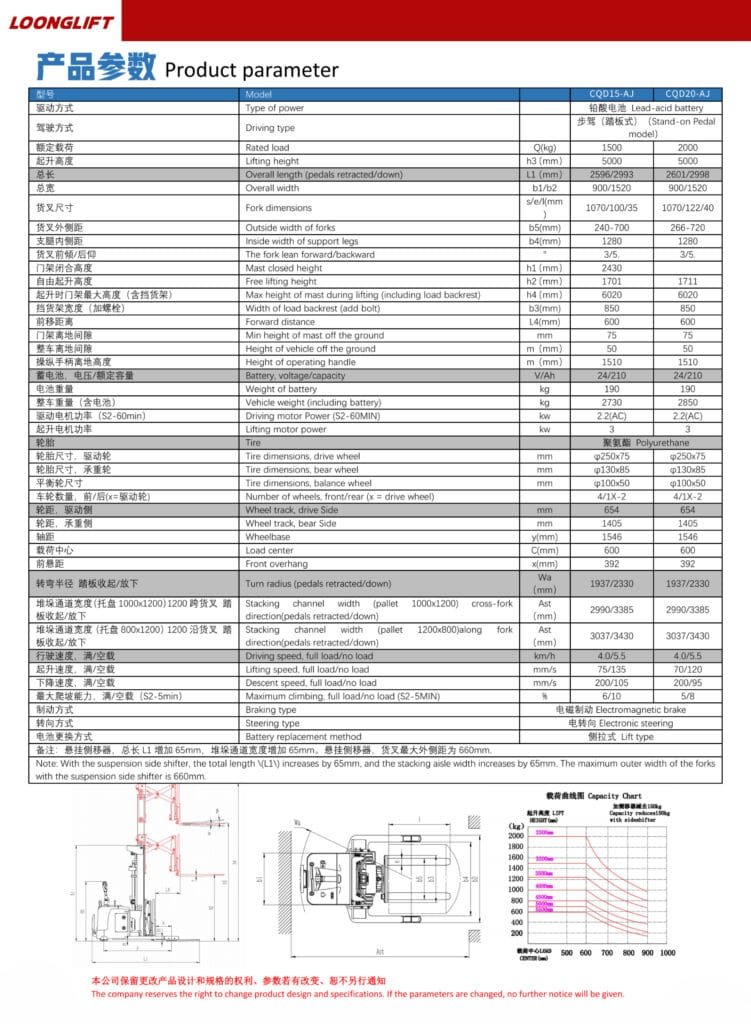

Load Capacity :1500–2000kg (1.5–2.0T)
Max Lifting Height :5000mm (5m)
Drive System :AC Drive Control System
Controller :Curtis Brand
Optional :Lithium Battery, Side Shifter

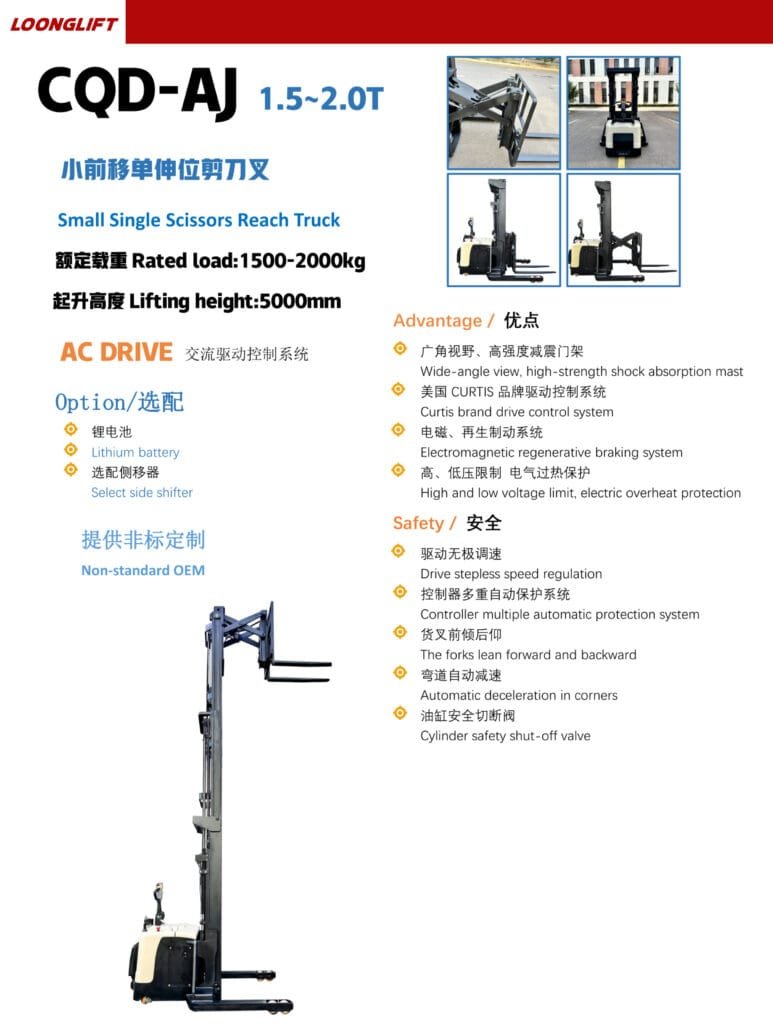

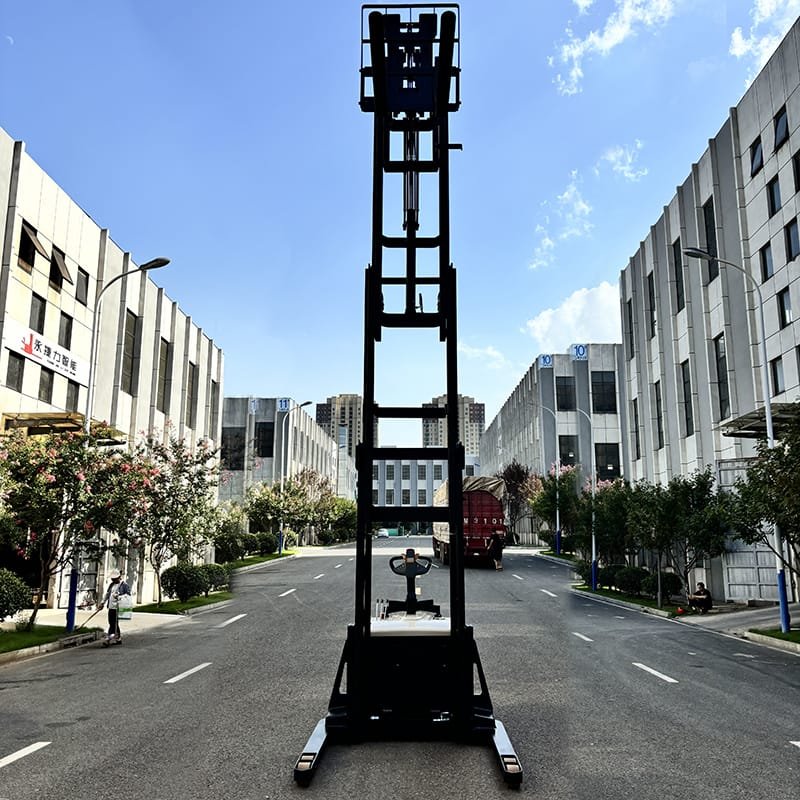

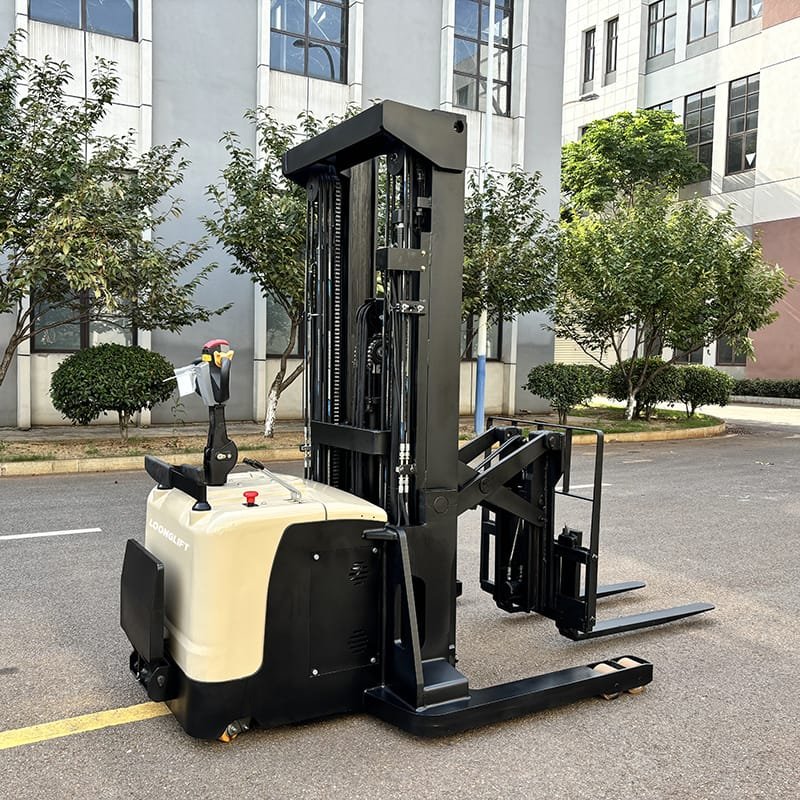

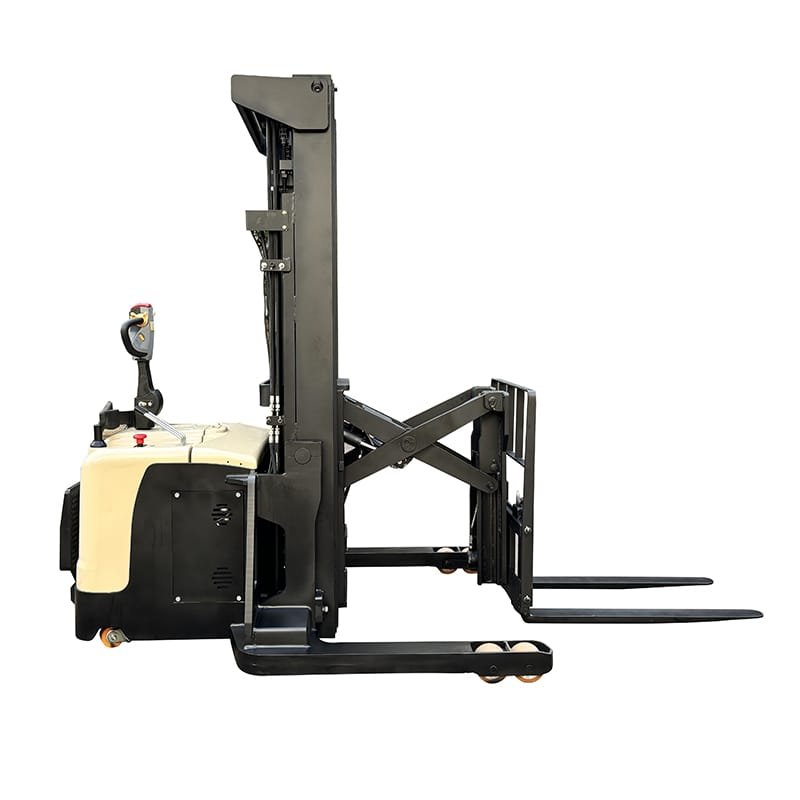

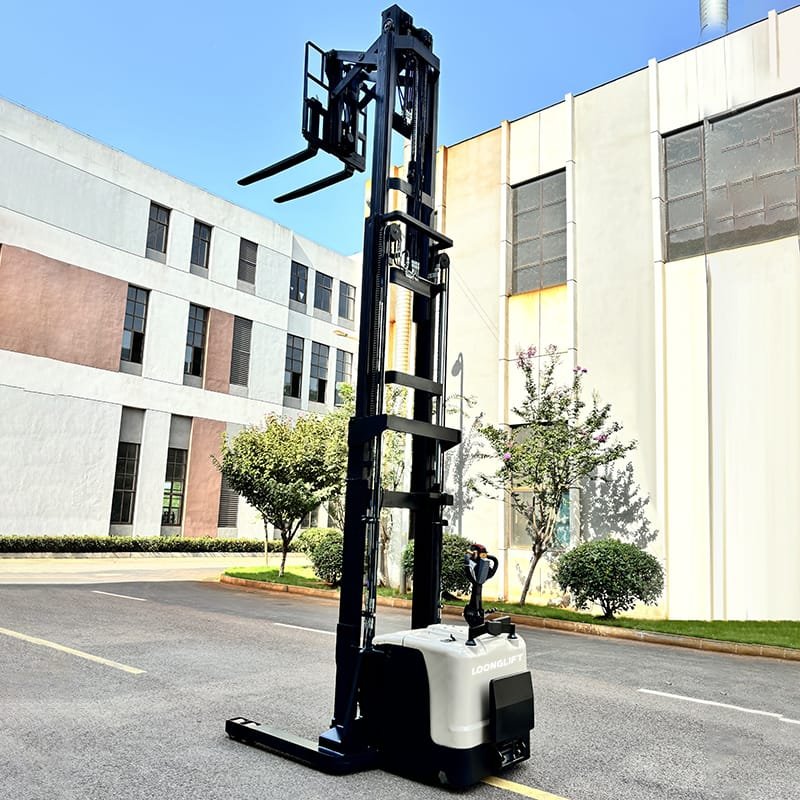

The CQD-AJ Small Single Scissors Reach Truck is a compact and efficient electric reach forklift designed for narrow aisle warehouses and high-bay storage applications.
With a rated load capacity of 1500–2000kg and a maximum lifting height of 5000mm, this model is ideal for improving vertical storage efficiency while maintaining precise control in confined spaces.
Equipped with an AC drive system and Curtis controller, the CQD-AJ ensures smooth operation, energy efficiency, and reliable performance for daily material handling tasks such as pallet stacking, order picking, and warehouse transportation.
Wide-angle mast design improves operator visibility and enhances safety during high-level stacking.
Heavy-duty steel construction ensures long service life and stable lifting performance.
Equipped with a Curtis brand controller, delivering precise control and smooth driving experience.
AC drive technology reduces maintenance cost and improves energy efficiency.
The system converts braking energy into power, improving battery efficiency and reducing wear on components.
Built-in protection system includes:
Ensures long-term safe and stable operation.
| Safety Feature | Benefit |
|---|---|
| Stepless Speed Regulation | Smooth control in narrow spaces |
| Multi-Protection Controller | Automatic fault detection |
| Fork Forward/Backward Tilt | Easier pallet handling |
| Automatic Corner Deceleration | Improved turning safety |
| Cylinder Safety Valve | Prevents sudden load drop |
The CQD-AJ reach truck is widely used in:
It is especially suitable for businesses looking to maximize storage density and improve handling efficiency.
👉 Learn more about warehouse equipment selection:
Electric Forklift Advantages for Modern Warehouses
How to Choose the Right Forklift for Your Warehouse
We support non-standard customization based on your requirements, including:
Q1: What is the load capacity of the CQD-AJ reach truck?
A: 1500–2000kg (1.5–2.0 tons), suitable for standard warehouse operations.
Q2: What is the maximum lifting height?
A: 5000mm (5 meters), ideal for high-level storage.
Q3: Is lithium battery available?
A: Yes, lithium battery is optional for longer working time and faster charging.
Q4: Can it be used in narrow aisles?
A: Yes, it is specifically designed for narrow aisle environments.
Q5: What safety features are included?
A: It includes regenerative braking, safety valve, automatic deceleration, and controller protection system.
Looking for a reliable reach truck supplier?
Send us your requirements to get:
Contact us now for a fast quotation within 24 hours.
Max Lifting Height :5000mm (5m)
Drive System :AC Drive Control System
Controller :Curtis Brand
Optional :Lithium Battery, Side Shifter){kind=link}
