CPD13J walkie counterbalance forklift with 1200kg capacity and 1.6–3.5m lift height. Ideal electric forklift for small warehouse, retail and e-commerce logistics. In stock, fast delivery.

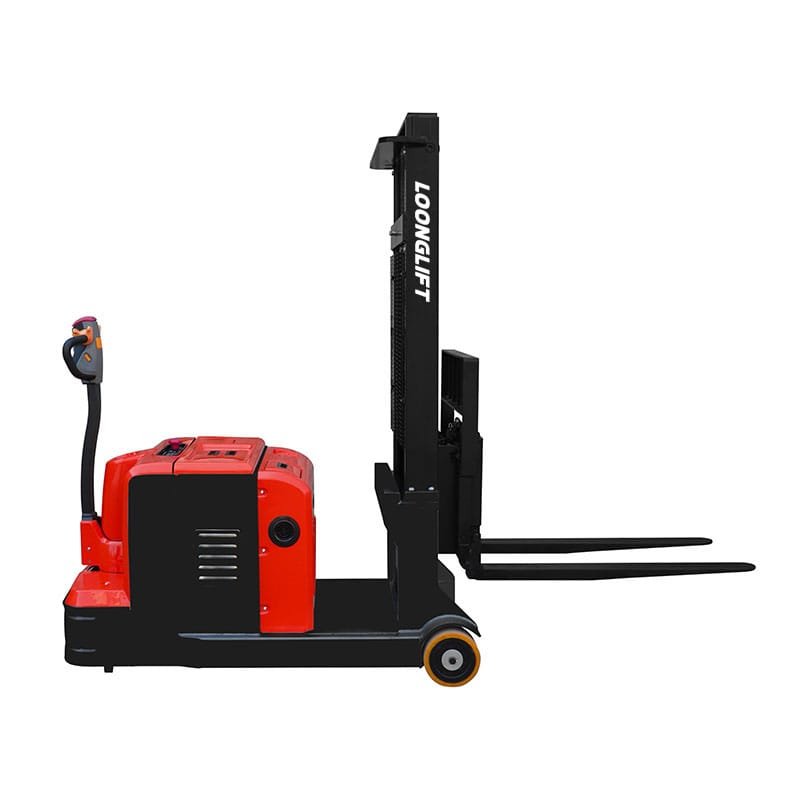

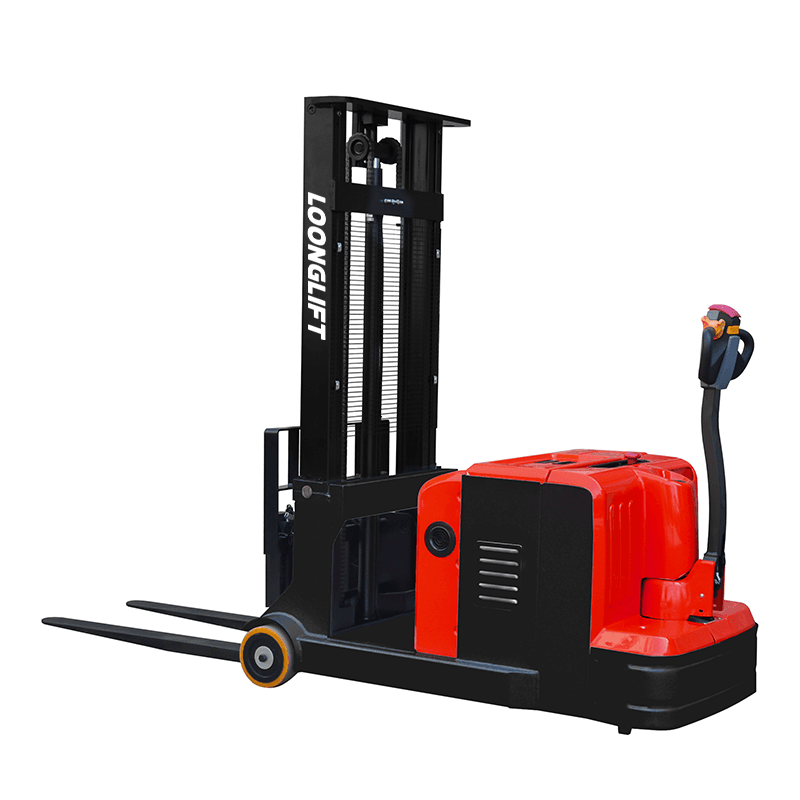

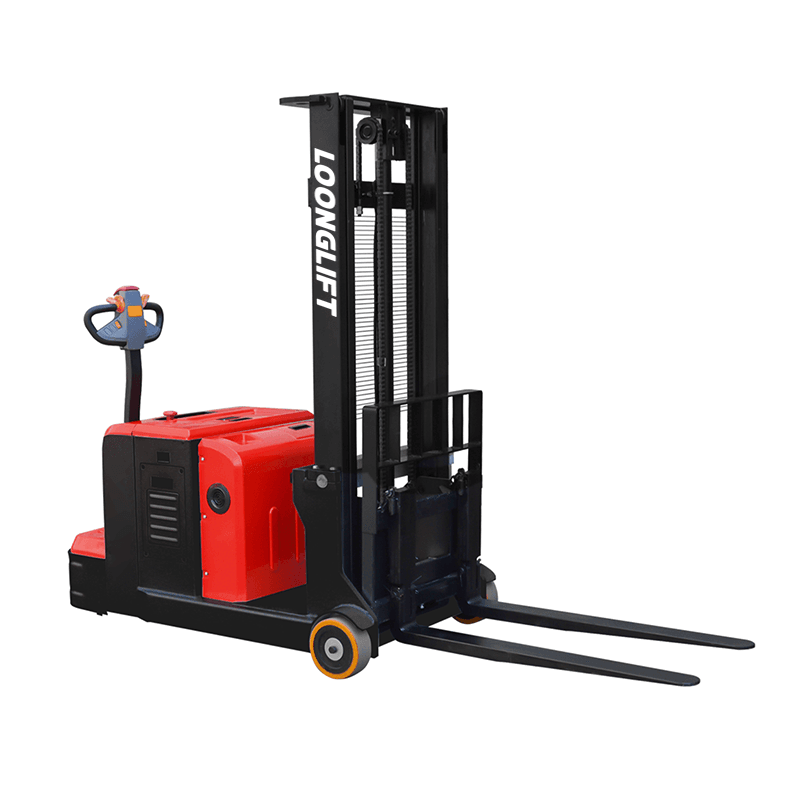

The CPD13J Walkie Counterbalance Forklift is a compact and efficient electric forklift designed for small warehouses, retail environments, and light-duty logistics operations.
With a 1200kg (1.2 ton) load capacity and lifting heights from 1.6m to 3.5m, it is ideal for pallet handling, stacking, and short-distance transportation in space-limited environments.
Unlike traditional pallet stackers, this walkie counterbalance forklift features a no-outrigger design, allowing it to handle closed pallets and non-standard pallets easily.
It is the perfect forklift alternative for businesses that need flexibility, compact size, and lower cost.
In stock now with fast delivery. All units are tested before shipment. OEM customization available.

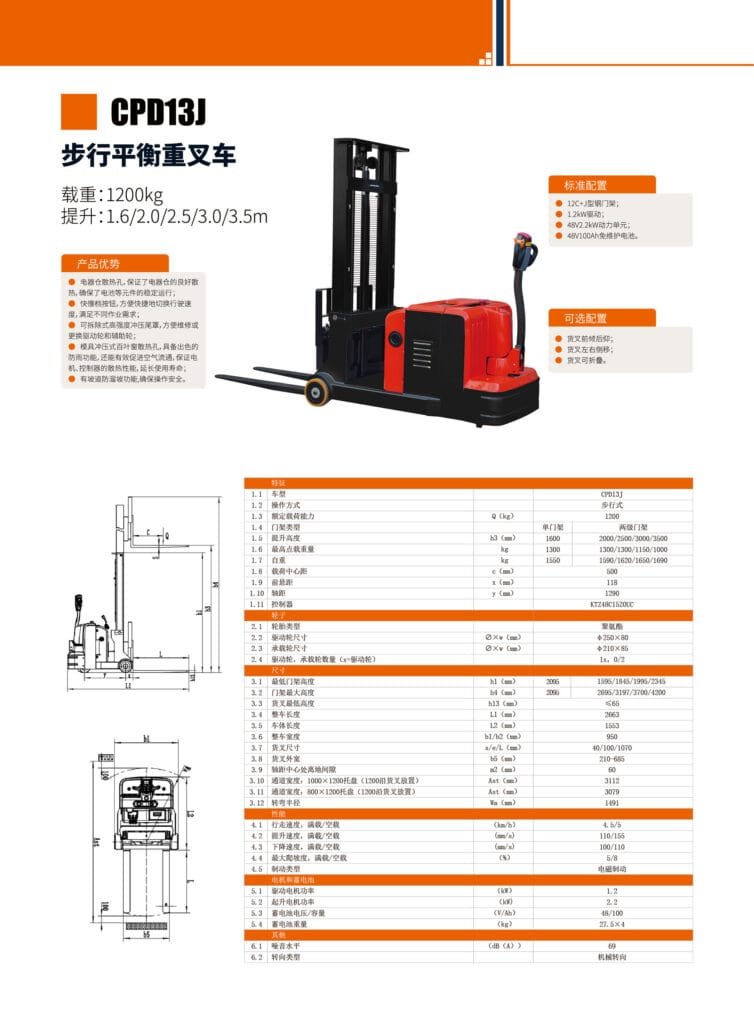

Model: CPD13J
Product Type: Walkie Counterbalance Forklift
Load Capacity: 1200kg (1.2 Ton)
Operation Type: Walkie (Pedestrian)
Lifting Height Options:
1600mm / 2000mm / 2500mm / 3000mm / 3500mm
Drive Motor: 1.2kW
Lift Motor: 2.2kW
Battery: 48V / 200Ah Maintenance-Free
Brake Type: Electromagnetic Braking
Steering Type: Mechanical Steering
Noise Level: ≤ 69 dB(A)
Travel Speed (Full/No Load): 4.0 / 4.5 km/h
Lifting Speed (Full/No Load): 110 / 115 mm/s
Lowering Speed (Full/No Load): 100 / 110 mm/s
Gradeability (Full/No Load): 5% / 8%
Overall Width: 1150 mm
Overall Length: 3112 mm (with forks)
Turning Radius: 1991 mm
Fork Size: 40/50/1070 mm
Fork Outer Width: 210–685 mm
Counterbalance Design for Closed Pallets
Handles closed pallets directly without outriggers, solving a key limitation of standard stackers.
Compact Electric Forklift for Small Warehouse
Designed for narrow aisles and limited workspace, ideal for indoor logistics operations.
Efficient Heat Dissation System
Built-in cooling vents ensure stable operation of motor, controller, and battery, extending service life.
Flexible Speed Control
Fast and slow speed switching improves safety and efficiency in different working conditions.
Easy Maintenance Structure
Modular high-strength cover design allows quick access to key components for maintenance.
Enhanced Safety Protection
Equipped with anti-slip function on slopes and rainproof ventilation design for safer operation.
This electric walkie forklift is ideal for:
Small warehouse operations
Retail stores and supermarkets
E-commerce fulfillment centers
Manufacturing workshops
Businesses handling closed pallets
Users looking for a forklift alternative with lower cost
Small & Medium Warehouses
Efficient stacking and pallet handling in tight spaces
Retail & Supermarket Backrooms
Ideal for daily replenishment and goods movement
E-commerce Logistics Centers
Fast and flexible solution for high-frequency operations
Production Workshops
Supports material transport and assembly line supply
Indoor & Low-Noise Environments
Quiet operation (≤69 dB) suitable for enclosed spaces
Explore more warehouse equipment:
Electric Pallet Stackers
Electric Forklifts
Standard Configuration:
12C + steel mast
1.2kW drive motor
2.2kW lift motor
48V/200Ah maintenance-free battery
Optional Configuration:
Fork tilt (forward/backward)
Side shift (left/right)
Foldable forks
Q: What is the load capacity of CPD13J?
A: 1200kg (1.2 ton), suitable for light to medium-duty applications.
Q: Can it handle closed pallets?
A: Yes, the counterbalance design allows direct handling without outriggers.
Q: Is it suitable for small warehouses?
A: Yes, it is specifically designed for compact spaces and narrow aisles.
Q: What is the lifting height range?
A: 1.6m to 3.5m depending on mast configuration.
Q: What type of battery does it use?
A: 48V/200Ah maintenance-free battery for longer operation time.
Looking for a compact and cost-effective forklift for your warehouse?
Request a Quote Now
Contact us for pricing, stock availability, and delivery time
In Stock & Fast Delivery
Ready-to-ship models available for quick dispatch
OEM & Customization Support
Branding, configuration, and bulk order solutions available
