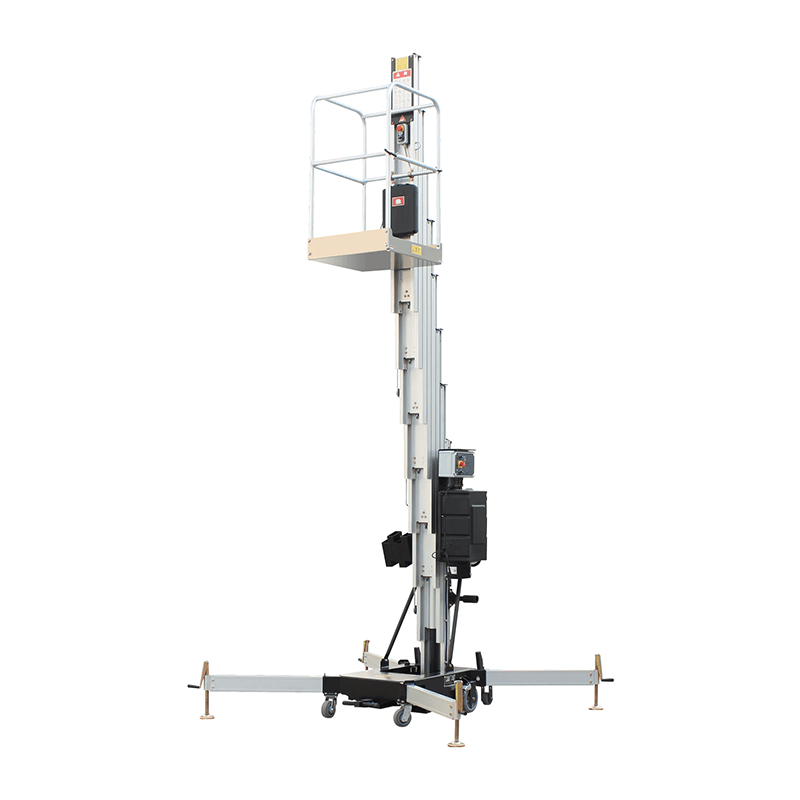

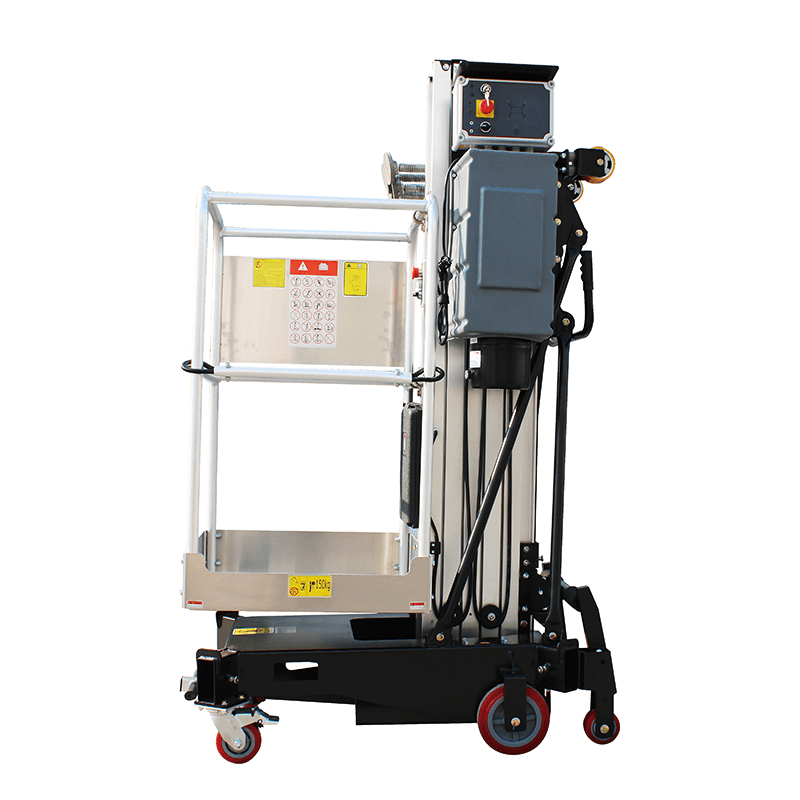

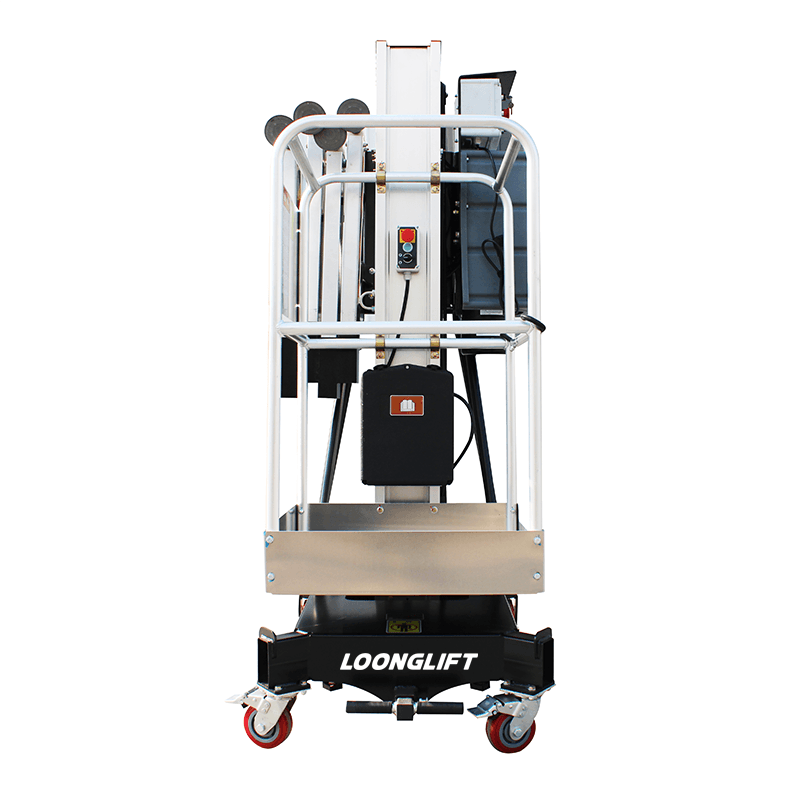

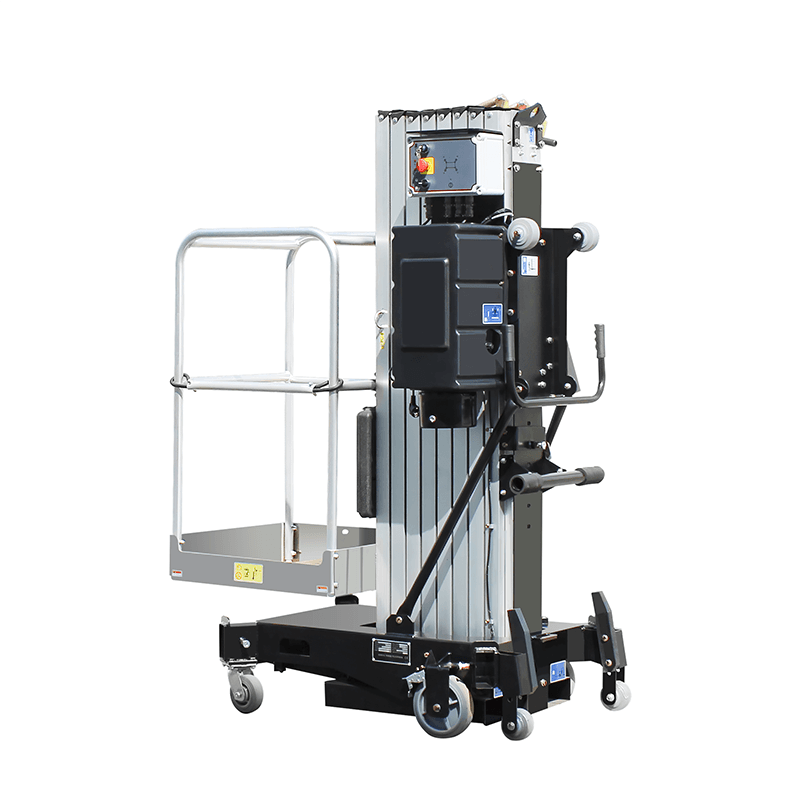

The GTWY1 single mast vertical lift is a lightweight and portable mobile aerial work platform designed for indoor and outdoor high-altitude operations.
Featuring a compact body, outrigger support system, and wide height range (6.7m–14m), this vertical mast lift is ideal for maintenance, installation, and rental applications.
👉 Available in 6 different working heights for flexible use
Key Advantages
Lightweight & Portable Design
- Weight from 330kg to 572kg
- Easy to transport and handle
- Suitable for indoor floors without damage
👉 Ideal portable vertical lift for rental and maintenance
Outrigger Support for High Stability
- Extendable outrigger system
- Strong stability during lifting
- Suitable for uneven ground conditions
👉 Safer aerial work platform for high-altitude work
Wide Height Range Options
- 6.7m / 8.1m / 9.6m / 11m / 12.4m / 14m
👉 Covers all scenarios from low ceilings to high installations
Compact Structure for Narrow Spaces
- Width: 0.76m
- Easy access to elevators and doorways
- Suitable for confined indoor environments
AC/DC Dual Power Options
- AC power: 110V / 220V / 380V
- DC battery optional (12V system)
- Flexible for different working environments
Enhanced Safety Features
- Self-leveling chain system
- Emergency stop (deadman switch)
- Outrigger interlock system
👉 Ensures safe and stable operation at height

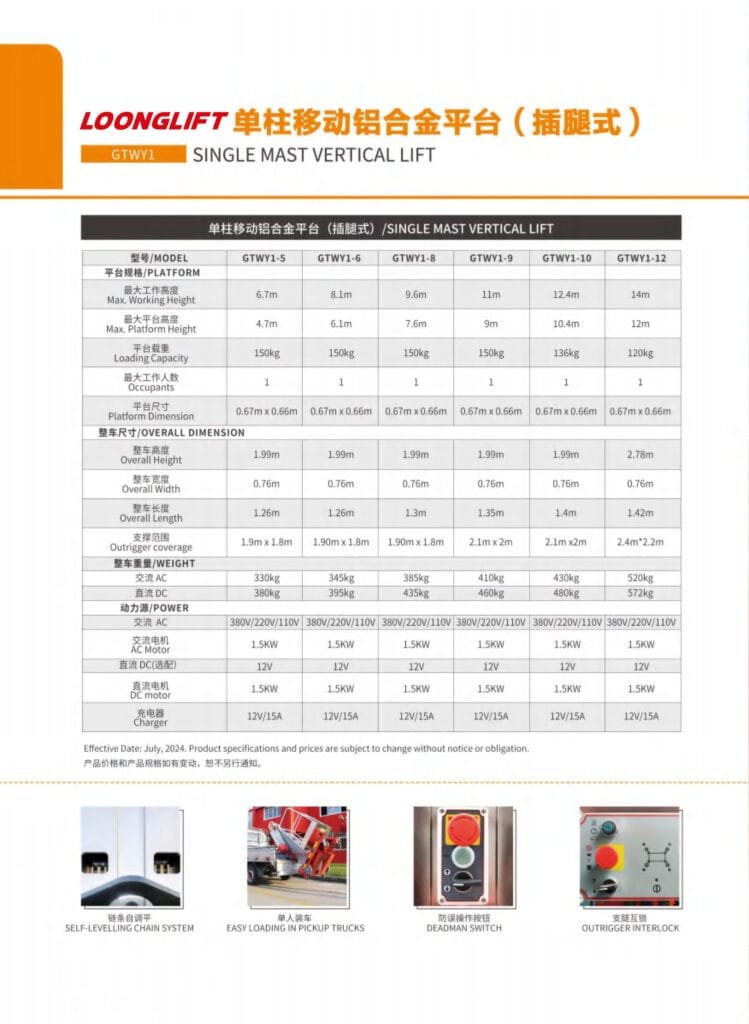

Specifications
Performance
| Model | GTWY1-5 | GTWY1-6 | GTWY1-8 | GTWY1-9 | GTWY1-10 | GTWY1-12 |
|---|---|---|---|---|---|---|
| Working Height | 6.7m | 8.1m | 9.6m | 11m | 12.4m | 14m |
| Platform Height | 4.7m | 6.1m | 7.6m | 9m | 10.4m | 12m |
| Load Capacity | 150kg | 150kg | 150kg | 150kg | 136kg | 120kg |
| Max Operators | 1 | 1 | 1 | 1 | 1 | 1 |
Dimensions
- Width: 0.76m
- Platform Size: 0.67 × 0.66m
- Length: 1.26m – 1.42m
- Height: 1.99m – 2.78m
Outrigger Range
- 1.9m × 1.8m → 2.4m × 2.2m
Power System
- AC Motor: 1.5kW
- Voltage: 110V / 220V / 380V
- DC Option: 12V battery
- Charger: 12V / 15A
-12_01-749x1024.jpg)
Applications
This mobile vertical mast lift is widely used for:
- Shopping malls & commercial buildings
- Factory maintenance & installation
- Warehouse rack inspection
- Street lighting & advertising installation
- Equipment rental business
👉 Best portable aerial work platform for indoor & outdoor use
Why Choose GTWY1 Vertical Lift
✔ Lightweight and easy to transport
✔ Outrigger design for maximum stability
✔ Multiple height options (6.7m–14m)
✔ AC/DC flexible power supply
✔ Ideal for rental and maintenance business
Related Equipment
FAQ – Single Mast Mobile Vertical Lift
1. What is a single mast vertical lift?
A single mast vertical lift is a lightweight aerial work platform designed for lifting one operator vertically for maintenance and installation tasks.
2. What is the advantage of outrigger vertical lifts?
An outrigger vertical lift provides:
- Better stability at height
- Safe operation on uneven ground
- Higher safety compared to non-supported lifts
3. What is the working height range of GTWY1 series?
This mobile vertical lift offers 6.7m to 14m working height, suitable for various indoor and outdoor applications.
4. Is this lift suitable for rental business?
Yes, due to:
- Lightweight design
- Easy transportation
- Wide application scenarios
👉 It is a popular rental aerial work platform
5. Can it be used indoors?
Yes, its compact size and lightweight structure make it perfect for:
- Shopping malls
- Warehouses
- Offices
- Hotels
6. What power options are available?
- AC power (110V / 220V / 380V)
- Optional DC battery
👉 Flexible for different working environments
7. How many people can operate this lift?
This aerial work platform is designed for single operator use.
8. How to choose the right vertical lift height?
- 6–8m → indoor maintenance
- 9–11m → warehouse & factory
- 12–14m → outdoor & high installations
👉 Choose based on working height requirements
